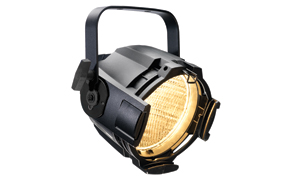

ETC Source Four PAR

Open reflector lighting fixture
PHYSICAL Die–cast aluminum
Tool free access to the reflector and lens
High–impact, thermally insulated knobs
Sealed reflector housing
Reflector temperature control through integral heat
sink fins
Gel frame holders with two accessory slots
Top–mounted, gel–frame retainer
Steel yoke with two mounting positions
Positive locking yoke clutch
UL and cUL listed
ELECTRICAL 115-240V, 50/60Hz
High–temperature three-conductor 36” leads in
a glass fiber outer sleeve
Supports ETC Dimmer Doubling™ technology
LAMP HPL — compact tungsten filament contained in a
krypton/xenon-filled quartz envelope (see table
for suitable lamp types)
750W maximum
Patented filament geometry makes for extremely
efficient light collection and transmission
Integral die–cast aluminum heat sink lamp base
LENSES Four heat resistant, molded borosilicate glass lenses
supplied with each unit: Very Narrow Spot (VNSP),
Narrow Spot (NSP), Medium Flood (MFL) and Wide
Flood (WFL).
Round beam for VNSP and NSP, oblong beam shape
for MFL and WFL
Tool free lens changing
Thermally insulated lens ring
OPTICAL Modified parabolic and multifaceted reflector
Computer designed reflector facets molded directly
into heat sink casting, finished with an enhanced
aluminum deposition process, and polished for
maximum reflectance
Metal Cold Mirror (MCM) also available

Weight 8 lbs
Voltage

120V

Beam Angle / Available Lens Type

VNSP, NSP, MFL, WFL, XWFL

Connector

Stage Pin

Lamp Types / Wattage

HPL/ 375W, 575W, 750W
