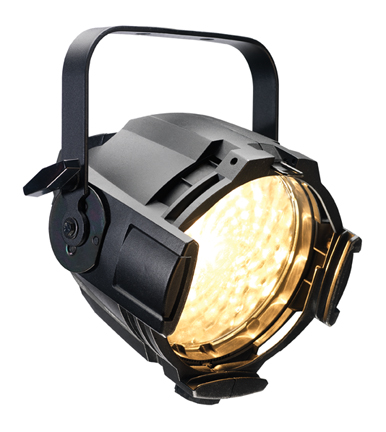

ETC Source Four PARnel

Variable focus open reflector lighting fixture
PHYSICAL Die–cast aluminum
Thermally insulated, precision focus knob
Sealed reflector housing
Reflector temperature control through integral
heat sink fins
Gel frame holders with two accessory slots
Top–mounted, gel–frame retainer
Steel yoke
Positive locking yoke clutch
UL and cUL listed
ELECTRICAL 115-240V, 50/60Hz
High–temperature three-conductor 36” leads in
a glass fiber outer sleeve
Supports ETC Dimmer Doubling™ technology
LAMP HPL — compact tungsten filament contained in
a krypton/xenon-filled quartz envelope (see table
for suitable lamp types)
750W
Patented filament geometry makes for extremely
efficient light collection and transmission
Integral die–cast aluminum heat sink lamp base
LENSES Patented wave lens system
Two heat resistant borosilicate glass lenses
One fixed wave clear lens and one rotatable wave
stippled lens installed
Tool free front lens changing
Thermally insulated lens ring
OPTICAL Modified parabolic and multifaceted reflector
Computer designed reflector facets molded directly
into heat sink casting, finished with an enhanced
aluminum deposition process, and polished for
maximum reflectance
