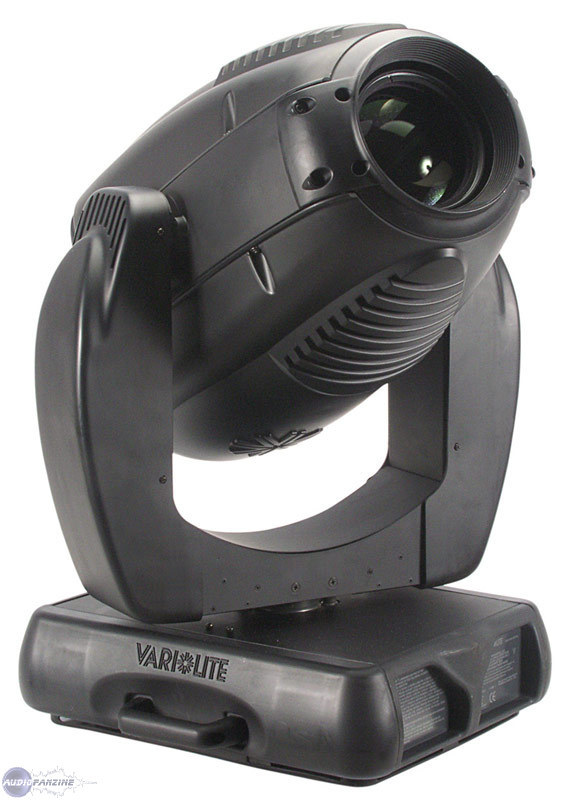

Vari*Lite VL3500 Spot

The VARI❋LITE VL3500 Spot luminaire maintains
the same high standards for imagery, beam
control, color and brightness set by the original
VARI❋LITE Series 3000 Spot luminaires, but with
the added feature of a four-blade shutter
mechanism that allows the blades to be operated
independently or in unison on two planes for a
clear and crisp image.
The VARI❋LITE VL3500 Spot luminaire features
6:1 zoom optics, CYM color mixing, variable CTO
color temperature correction, a six-position color
wheel, two gobo/effects wheels, a shutter and
separate dimmer and ultra-fast strobe
mechanisms. A standard pallet of gobos, effects
and colors is provided with the unit. Custom
gobos, effects and colors are available.
An upper enclosure houses the control electronics
as well as the arc power supply for the 1200 watt
short arc lamp. The arc power supply is power
factor corrected for efficient power distribution.
The VL3500 Spot luminaire can be controlled from
a wide variety of DMX512 consoles.
The luminaire is the same size as all other
VARI❋LITE Series 3000 luminaires, providing a
consistent hang configuration and appearance no
matter which luminaire type is required.

Weight 91 lbs


Lamp Wattage / Total Wattage

1200W Lamp / 1850W Total


CMY + CTO + Wheel

Shuttering Fixture


Rotating Gobos


Fixed Gobos
