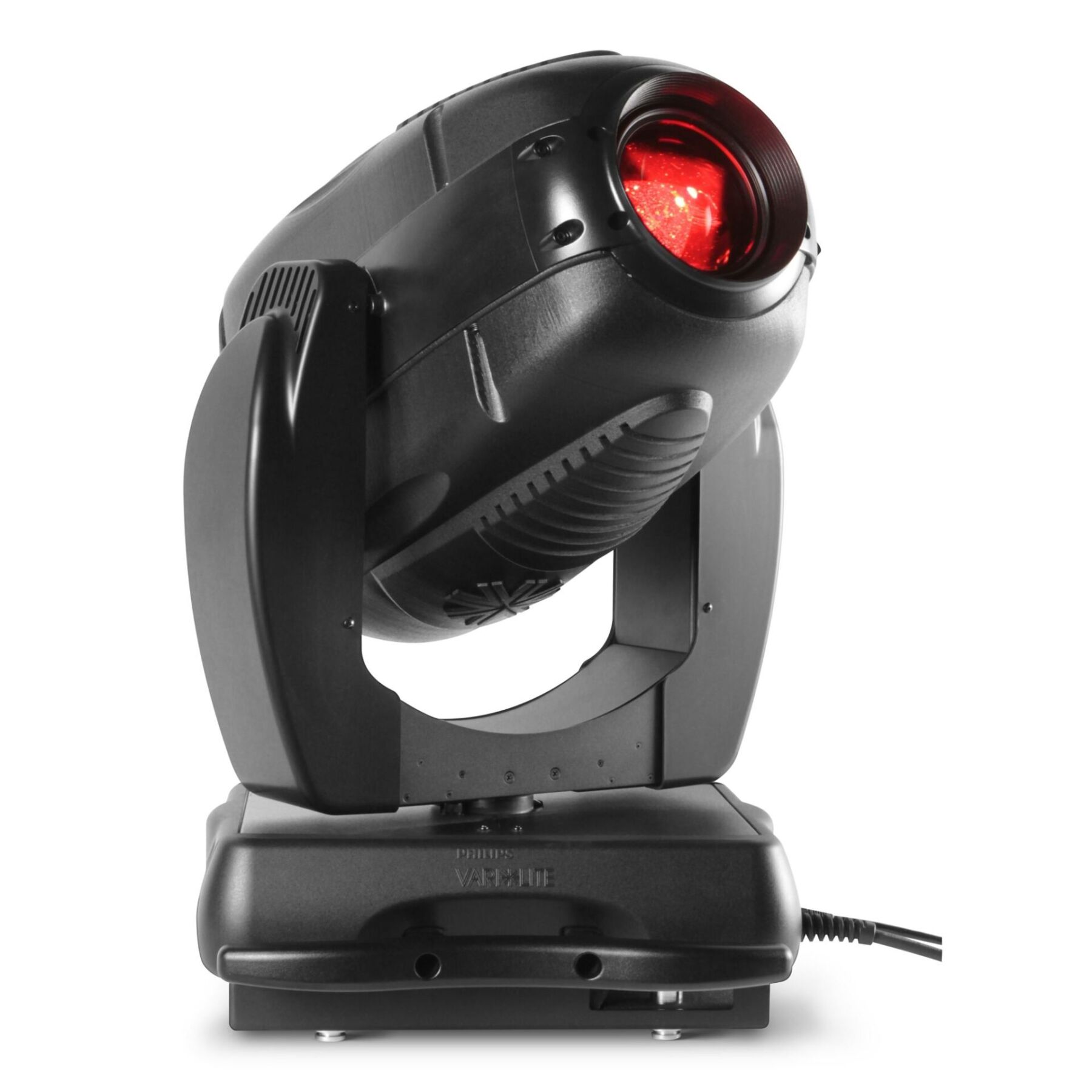

Vari*Lite VL3515 Spot

The VARI❋LITE VL3515 Spot Luminaire provides
the increased output of a 1500W lamp in a
luminaire that offers the same famous features as
the 1200W VL3500 Spot. Standard dual reflectors
allow users to choose either a peaked or flat field
beam.
The VARI❋LITE VL3515 Spot luminaire maintains
the same high standards for imagery, beam
control, color and brightness set by the original
VARI❋LITE Series 3000 Spot luminaires, but with
the added feature of a four-blade shutter
mechanism that allows the blades to be operated
independently or in unison on two planes for a
clear and crisp image.
The VARI❋LITE VL3515 Spot luminaire features
6:1 zoom optics, CYM color mixing, variable CTO
color temperature correction, a six-position color
wheel, two gobo/effects wheels, a shutter and
separate dimmer and ultra-fast strobe
mechanisms. A standard palette of gobos, effects
and colors is provided with the unit. Custom
gobos, effects and colors are available.
The VL3515 allows users to operate its single
lamp at three different wattages via either a
control channel setting or a lamp menu option.
With only a setting adjustment, the fixture will run
its short arc lamp at 900W, 1200W or 1650W
without any detrimental effects on the lamp.
An upper enclosure houses the control electronics
as well as the arc power supply for the 1500 watt
short arc lamp. The arc power supply is power
factor corrected for efficient power distribution.
New, oversized upper-enclosure handles allow for
easier hanging and loading.
The VL3515 Spot luminaire can be controlled from
a wide variety of DMX512 consoles.
The luminaire is similarly sized in comparison to all
other VARI❋LITE Series 3000 luminaires,
providing a consistent hang configuration
and appearance no matter which
luminaire type is required.

Weight 94 lbs
Voltage

200-264VAC

Lamp Wattage / Total Wattage

1500W Lamp / 2200W Total

Color

CMY + CTO + Wheel

Shuttering Fixture

Yes

Rotating Gobos

5

Fixed Gobos

6
